Fuse Detector

Find products

Enter article number or search values or keywords

Filter by:

Voltage type:

AC/DC

AC

DC

Rated current from ... to

A

Rated voltage from ... to

V

Rated breaking capacity from ... to

kA

Product group

Characteristic

Size

Dimensions

Application

Approvals

Segment

We found 1 main article with a total of 18 sub-articles for your search.

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF

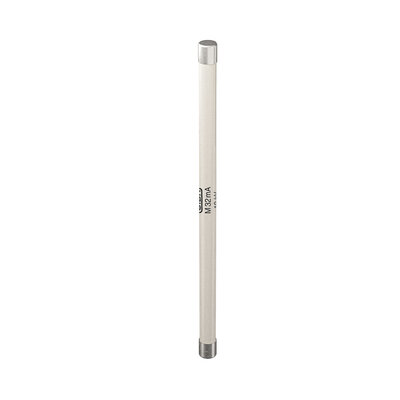

	8x150	0.032A - 2A	10 kV	F	35A AC 10kV	Download PDF

18 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
187000.0,032	8x150	32mA	10 kV	M	35A AC 10kV	Details to product 187000.0,032
187000.0,05	8x150	50mA	10 kV	M	35A AC 10kV	Details to product 187000.0,05
187000.0,063	8x150	63mA	10 kV	M	35A AC 10kV	Details to product 187000.0,063
187000.0,08	8x150	80mA	10 kV	M	35A AC 10kV	Details to product 187000.0,08
187000.0,1	8x150	100mA	10 kV	M	35A AC 10kV	Details to product 187000.0,1
187000.0,125	8x150	125mA	10 kV	F	35A AC 10kV	Details to product 187000.0,125
187000.0,16	8x150	160mA	10 kV	F	35A AC 10kV	Details to product 187000.0,16
187000.0,2	8x150	200mA	10 kV	F	35A AC 10kV	Details to product 187000.0,2
187000.0,25	8x150	250mA	10 kV	F	35A AC 10kV	Details to product 187000.0,25
187000.0,315	8x150	315mA	10 kV	F	35A AC 10kV	Details to product 187000.0,315
187000.0,4	8x150	400mA	10 kV	F	35A AC 10kV	Details to product 187000.0,4
187000.0,5	8x150	500mA	10 kV	F	35A AC 10kV	Details to product 187000.0,5
187000.0,63	8x150	630mA	10 kV	F	35A AC 10kV	Details to product 187000.0,63
187000.0,8	8x150	800mA	10 kV	F	35A AC 10kV	Details to product 187000.0,8
187000.1	8x150	1A	10 kV	F	35A AC 10kV	Details to product 187000.1
187000.1,25	8x150	1,25A	10 kV	F	35A AC 10kV	Details to product 187000.1,25
187000.1,6	8x150	1,6A	10 kV	F	35A AC 10kV	Details to product 187000.1,6
187000.2	8x150	2A	10 kV	F	35A AC 10kV	Details to product 187000.2
