  We found 1380 main article with a total of 7485 sub-articles for your search.

Fuse-Link

2055213  Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
NH2 35A - 250A 500 V gG 120 kA

10 Article(s)

Article number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
2055213.100 NH2 100A 500 V gG 120 kA Details
2055213.125 NH2 125A 500 V gG 120 kA Details
2055213.160 NH2 160A 500 V gG 120 kA Details
2055213.200 NH2 200A 500 V gG 120 kA Details
2055213.224 NH2 224A 500 V gG 120 kA Details
2055213.250 NH2 250A 500 V gG 120 kA Details
2055213.35 NH2 35A 500 V gG 120 kA Details
2055213.50 NH2 50A 500 V gG 120 kA Details
2055213.63 NH2 63A 500 V gG 120 kA Details
2055213.80 NH2 80A 500 V gG 120 kA Details

Contact us

Fuse-Link

2055604  Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity PDF
NH1 32A - 160A DC 750 V gR 50kA DC 750V

8 Article(s)

Article number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
2055604.100 NH1 100A DC 750 V gR 50kA DC 750V Details
2055604.125 NH1 125A DC 750 V gR 50kA DC 750V Details
2055604.160 NH1 160A DC 750 V gR 50kA DC 750V Details
2055604.32 NH1 32A DC 750 V gR 50kA DC 750V Details
2055604.40 NH1 40A DC 750 V gR 50kA DC 750V Details
2055604.50 NH1 50A DC 750 V gR 50kA DC 750V Details
2055604.63 NH1 63A DC 750 V gR 50kA DC 750V Details
2055604.80 NH1 80A DC 750 V gR 50kA DC 750V Details

Contact us Download PDF

2055620

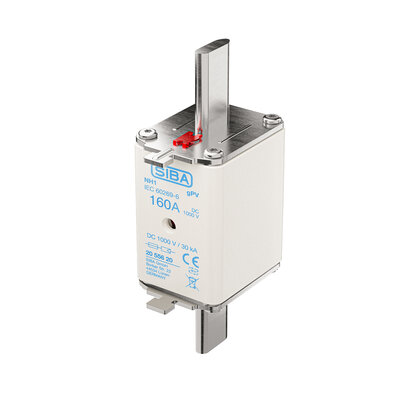

2055620  Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity PDF
NH1 32A - 160A DC 1000 V gPV 30kA DC 1000V

8 Article(s)

Article number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
2055620.100 NH1 100A DC 1000 V gPV 30kA DC 1000V Details
2055620.125 NH1 125A DC 1000 V gPV 30kA DC 1000V Details
2055620.160 NH1 160A DC 1000 V gPV 30kA DC 1000V Details
2055620.32 NH1 32A DC 1000 V gPV 30kA DC 1000V Details
2055620.40 NH1 40A DC 1000 V gPV 30kA DC 1000V Details
2055620.50 NH1 50A DC 1000 V gPV 30kA DC 1000V Details
2055620.63 NH1 63A DC 1000 V gPV 30kA DC 1000V Details
2055620.80 NH1 80A DC 1000 V gPV 30kA DC 1000V Details

Contact us Download PDF

2055629

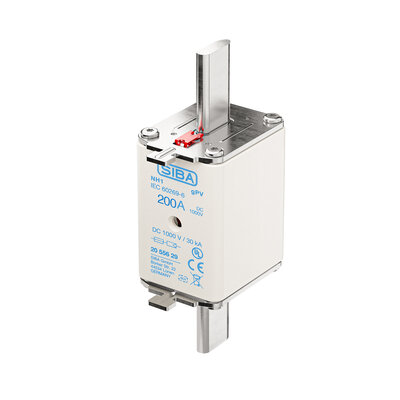

2055629  Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity PDF
NH1 63A - 200A DC 1000 V gPV 30kA DC 1000V

6 Article(s)

Article number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
2055629.100 NH1 100A DC 1000 V gPV 30kA DC 1000V Details
2055629.125 NH1 125A DC 1000 V gPV 30kA DC 1000V Details
2055629.160 NH1 160A DC 1000 V gPV 30kA DC 1000V Details
2055629.200 NH1 200A DC 1000 V gPV 30kA DC 1000V Details
2055629.63 NH1 63A DC 1000 V gPV 30kA DC 1000V Details
2055629.80 NH1 80A DC 1000 V gPV 30kA DC 1000V Details

Contact us Download PDF

2055632

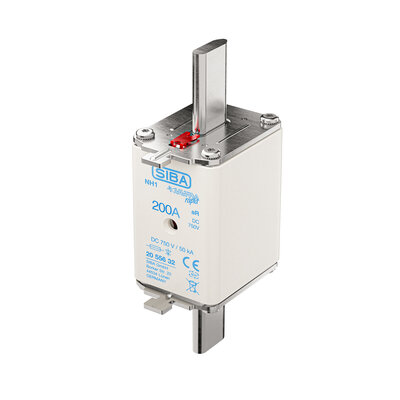

2055632  Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity PDF
NH1 200A DC 750 V aR 50kA DC 810V

1 Article(s)

Article number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
2055632.200 NH1 200A DC 750 V aR 50kA DC 810V Details

Contact us Download PDF

2055729

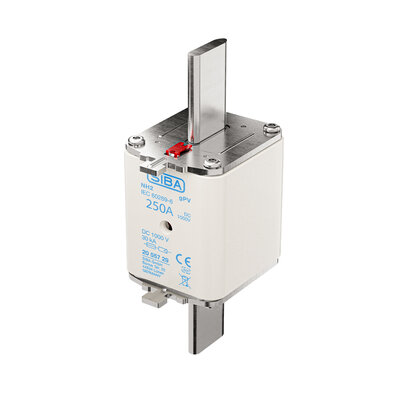

2055729  Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity PDF
NH2 200A - 250A DC1000 V gPV 30kA DC 1000V

2 Article(s)

Article number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
2055729.200 NH2 200A DC 1000 V gPV 30kA DC 1000V Details
2055729.250 NH2 250A DC1000 V gPV 30kA DC 1000V Details

Contact us Download PDF

Fuse-Link

2055804  Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity PDF
NH000 16A - 160A 660 V aR 100kA AC 660V

12 Article(s)

Article number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
2055804.100 NH000 100A 660 V gR 100kA AC 660V Details
2055804.125 NH000 125A 660 V aR 100kA AC 660V Details
2055804.16 NH000 16A 660 V gR 100kA AC 660V Details
2055804.160 NH000 160A 660 V aR 100kA AC 660V Details
2055804.20 NH000 20A 660 V gR 100kA AC 660V Details
2055804.25 NH000 25A 660 V gR 100kA AC 660V Details
2055804.32 NH000 32A 660 V gR 100kA AC 660V Details
2055804.35 NH000 35A 660 V gR 100kA AC 660V Details
2055804.40 NH000 40A 660 V gR 100kA AC 660V Details
2055804.50 NH000 50A 660 V gR 100kA AC 660V Details
2055804.63 NH000 63A 660 V gR 100kA AC 660V Details
2055804.80 NH000 80A 660 V gR 100kA AC 660V Details

Contact us Download PDF

Fuse-Link

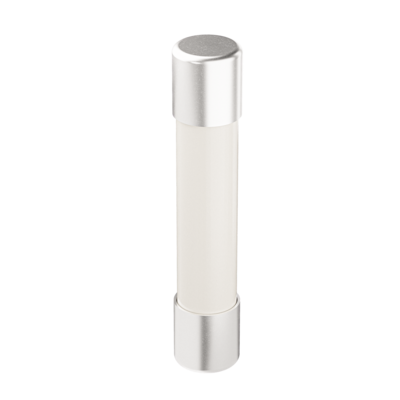

7009440  Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
6.3x32 0.5A - 16A 600 V FF 50kA AC 600V

4 Article(s)

Article number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
7009440.10 6.3x32 10A 600 V FF 50kA AC 600V Details
7009440.10IP 6.3x32 10A 600 V FF 50kA AC 600V Details
7009440.16 6.3x32 16A 600 V FF 50kA AC 600V Details
7009440.3,15 6.3x32 3,15A 600 V FF 50kA AC 600V Details

Contact us

7009463

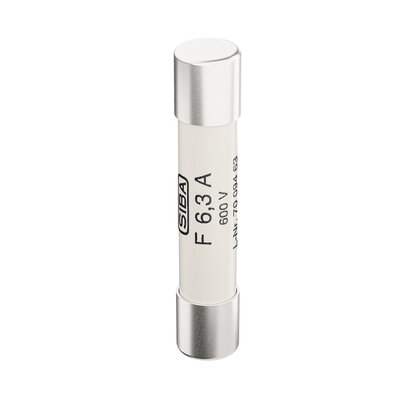

7009463  Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity PDF
6.3x32 0.2A - 10A 600 V F 50kA AC 600V

15 Article(s)

Article number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
7009463.0,2 6.3x32 200mA 600 V F 50kA AC 600V Details
7009463.0,4 6.3x32 400mA 600 V F 50kA AC 600V Details
7009463.0,5 6.3x32 500mA 600 V F 50kA AC 600V Details
7009463.0,8 6.3x32 800mA 600 V F 50kA AC 600V Details
7009463.1 6.3x32 1A 600 V F 50kA AC 600V Details
7009463.1IP 6.3x32 1A 600 V F 50kA AC 600V Details
7009463.10 6.3x32 10A 600 V F 50kA AC 600V Details
7009463.10IP 6.3x32 10A 600 V F 50kA AC 600V Details
7009463.2 6.3x32 2A 600 V F 50kA AC 600V Details
7009463.3 6.3x32 3A 600 V F 50kA AC 600V Details
7009463.3AK 6.3x32 3A 600 V F 50kA AC 600V Details
7009463.5 6.3x32 5A 600 V F 50kA AC 600V Details
7009463.5AK 6.3x32 5A 600 V F 50kA AC 600V Details
7009463.7 6.3x32 7A 600 V F 50kA AC 600V Details
7009463.7IP 6.3x32 7A 600 V F 50kA AC 600V Details

Contact us Download PDF

Fuse-Link

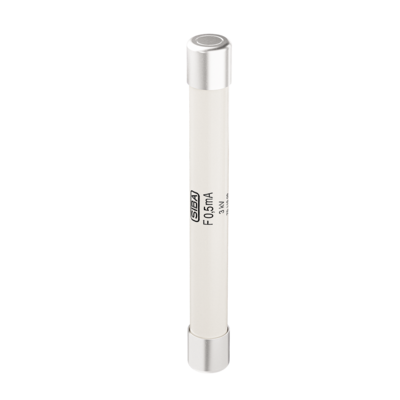

7011509  Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
10x85 0.125A - 4A 3000 V F 150A AC 3kV

7 Article(s)

Article number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
7011509.0,125 10x85 125mA 3000 V F 150A AC 3kV Details
7011509.0,16 10x85 160mA 3000 V F 150A AC 3kV Details
7011509.0,5 10x85 500mA 3000 V F 150A AC 3kV Details
7011509.1 10x85 1A 3000 V F 150A AC 3kV Details
7011509.2 10x85 2A 3000 V F 150A AC 3kV Details
7011509.3,15 10x85 3,15A 3000 V F 150A AC 3kV Details
7011509.4 10x85 4A 3000 V F 150A AC 3kV Details

Contact us

7011527

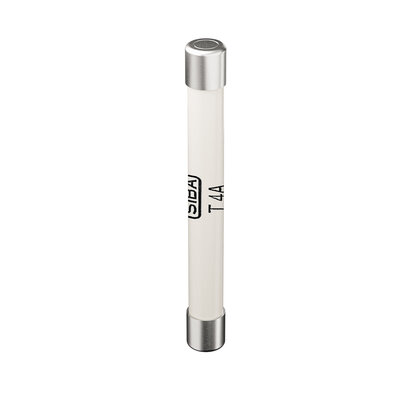

7011527  Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
10x85 0.63A - 12.5A AC1.5/DC1 kV T 10kA DC 900V

7 Article(s)

Article number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
7011527.0,63 10x85 630mA AC1.5/DC1 kV T 10kA DC 1000V Details
7011527.12,5 10x85 12,5A AC1.5/DC1 kV T 10kA DC 900V Details
7011527.2,5 10x85 2,5A AC1.5/DC1 kV T 10kA DC 1000V Details
7011527.3,15 10x85 3,15A AC1.5/DC1 kV T 10kA DC 1000V Details
7011527.4 10x85 4A AC1.5/DC1 kV T 10kA DC 1000V Details
7011527.6,3 10x85 6,3A AC1.5/DC1 kV T 10kA DC 900V Details
7011527.10 10x85 10A AC1.5/DC1 kV T 10kA DC 900V Details

Contact us

Fuse-Link

7011552  Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
10x85 1A - 20A AC1.5/DC1 kV F 1.5kA AC1.5kV/300A DC1000V

9 Article(s)

Article number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
7011552.1 10x85 1A AC1.5/DC1 kV F 1.5kA AC1.5kV/300A DC1000V Details
7011552.1,6 10x85 1,6A AC1.5/DC1 kV F 1.5kA AC1.5kV/300A DC1000V Details
7011552.10 10x85 10A AC1.5/DC1 kV F 1.5kA AC1.5kV/300A DC1000V Details
7011552.12 10x85 12A AC1.5/DC1 kV F 1.5kA AC1.5kV/300A DC1000V Details
7011552.16 10x85 16A AC1.5/DC1 kV F 1.5kA AC1.5kV/300A DC1000V Details
7011552.2 10x85 2A AC1.5/DC1 kV F 1.5kA AC1.5kV/300A DC1000V Details
7011552.3,15 10x85 3,15A AC1.5/DC1 kV F 1.5kA AC1.5kV/300A DC1000V Details
7011552.4 10x85 4A AC1.5/DC1 kV F 1.5kA AC1.5kV/300A DC1000V Details
7011552.6,3 10x85 6,3A AC1.5/DC1 kV F 1.5kA AC1.5kV/300A DC1000V Details

Contact us
