Measuring equipment and instruments
protect reliably
Intro
Demands on digital measurement infrastructures are increasing worldwide. Energy and water suppliers as well as industrial companies rely on networked, high-precision measuring systems and instruments to reliably record consumption data, intelligently control load flows and ensure secure communication channels in critical infrastructure, or simply to record electrical measurements. Issues such as tamper resistance, operational continuity, data security and protection against electrical overloads are coming to the fore worldwide.
Our products and solutions for metering devices
SIBA develops fuse-links and protection technology for a wide range of measurement applications, from multimeters and metering instruments to industrial measurement modules and communication-enabled monitoring systems. The range extends from miniature fuse-links (e.g. for multimeters) and specialized fuse-link elements for metering devices to medium-voltage fuse-links for test equipment in distribution networks.
Reliable equipment protection for precision measurement technology
SIBA offers a comprehensive range of miniature fuse-links for demanding measurement applications. From proven miniature fuse-links for digital multimeters and specially developed fuse-link elements for modern metering devices to medium-voltage fuse-links for test equipment in distribution networks: Our certified products offer maximum electrical protection, high reliability and a long service life. All components are designed to take up minimal space and to ensure safe operation in sensitive measurement electronics.
Seamlessly integrated – with matching accessories
To ensure safe and standard-compliant system integration, SIBA supplies robust fuse holders and clips for a variety of form factors and mounting orientations. This allows our miniature fuse-links to be integrated into the application reliably and safely. Numerous product certifications from accredited testing institutes underscore the high quality and international applicability of our solutions.
Customer-specific engineering & technical support
Standard solution or custom application: Our experienced engineering team develops customized protection concepts, tailored precisely to your electrical and physical requirements – including custom AVT solutions. We provide comprehensive support in selecting the right fuse-link, from analysis through to implementation.
Benefits at a glance
- Effective protection keeps your infrastructure up and running
- Robustness and reliability minimize unplanned downtime and support a resilient, future-proof measurement infrastructure
- Fuse-link technology with minimal footprint and high integration capability
- With our support, you will quickly and efficiently find the perfect solution
Working with you as a partner
SIBA supports equipment manufacturers, energy suppliers, electrical contractors and industrial companies in the selection, design and documentation of protection solutions. Our aim remains the same: to provide the best possible technical, sustainable and cost-effective protection for your electrical systems and your entire measurement infrastructure.

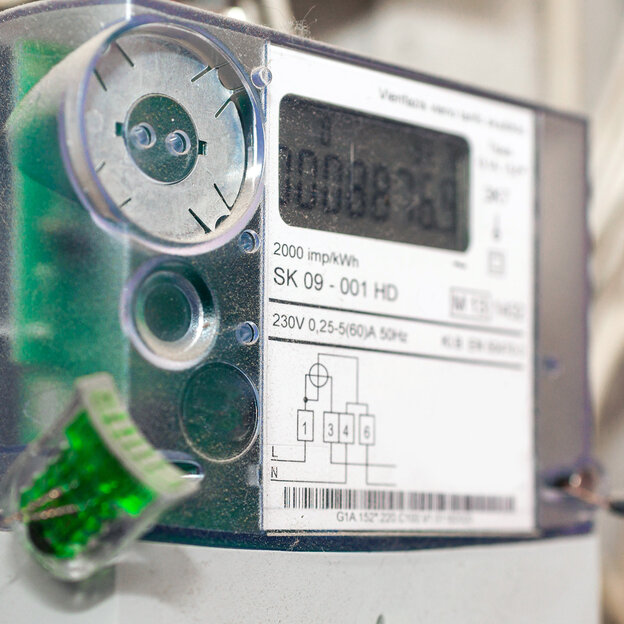

Smart metering – protection solutions for connected metering infrastructures
Protected devices for a digitalized energy sector
Smart meter systems form the backbone of modern electricity grids. They continuously collect consumption data, communicate with network operators and enable smart load and energy management. At the same time, the demands placed on reliability, long-term stability and tamper resistance are increasing significantly – particularly in grid-connected applications and over lifespans of 10 to 20 years.
SIBA develops miniature solutions for smart meter applications which are specifically designed to meet these challenges.
SIBA solutions for smart metering
SIBA offers a tailor-made range of miniature fuse-links specially developed for smart metering systems:

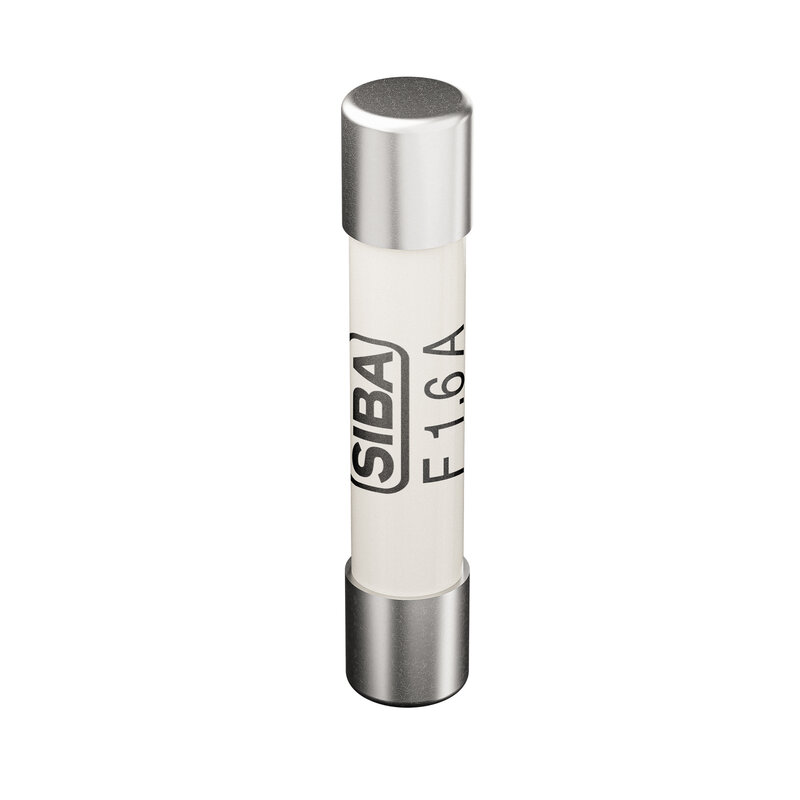

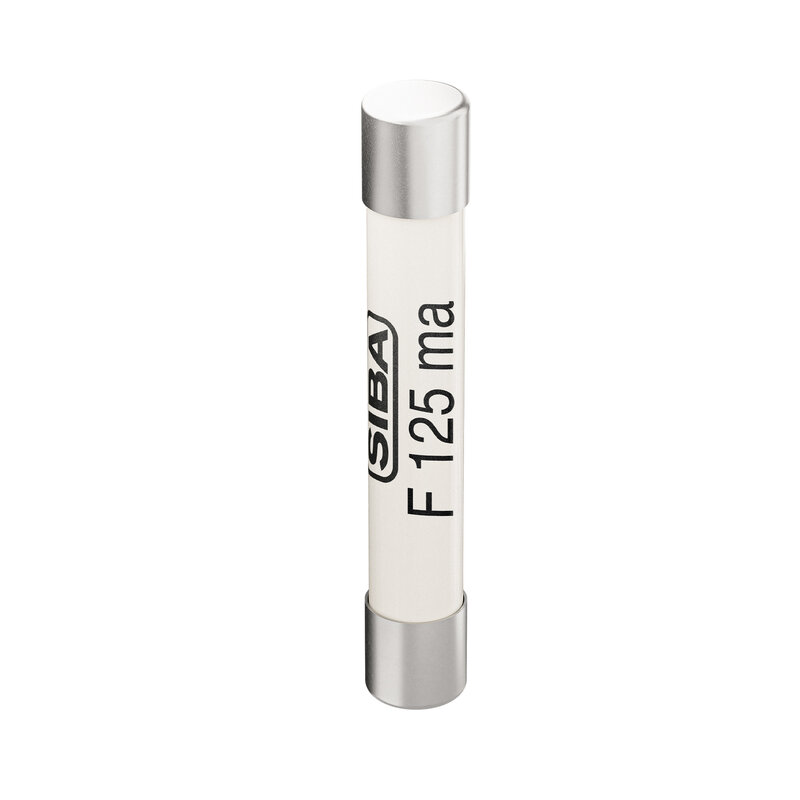

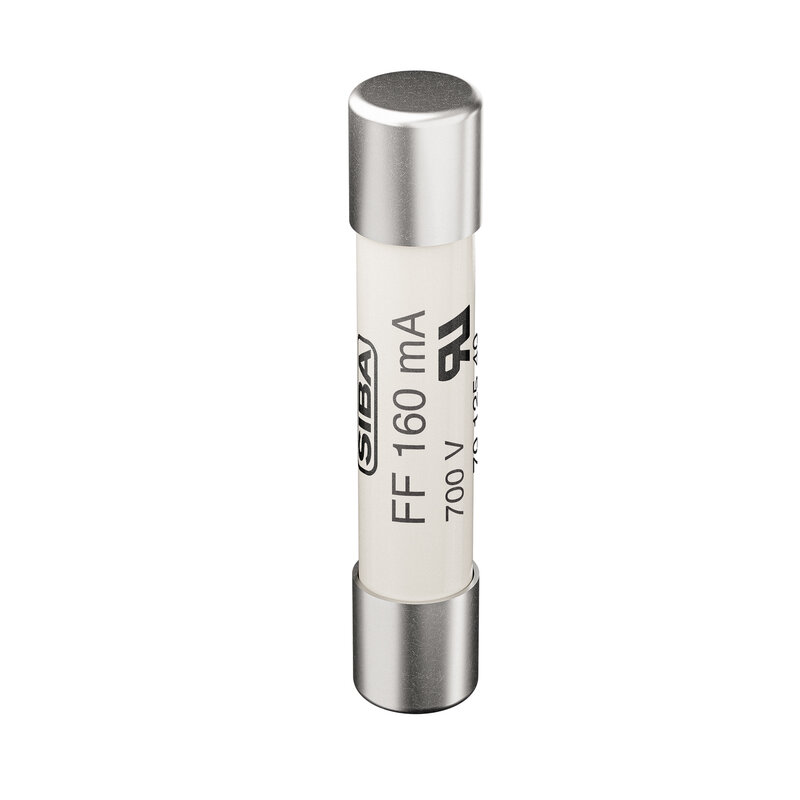

Miniature fuse-links (5×20mm, 6.3×32mm)
- Precise trigger characteristics for sensitive metering electronics
- High switching capacity in a compact design
- Ideal for power supplies, backup systems and communication protection

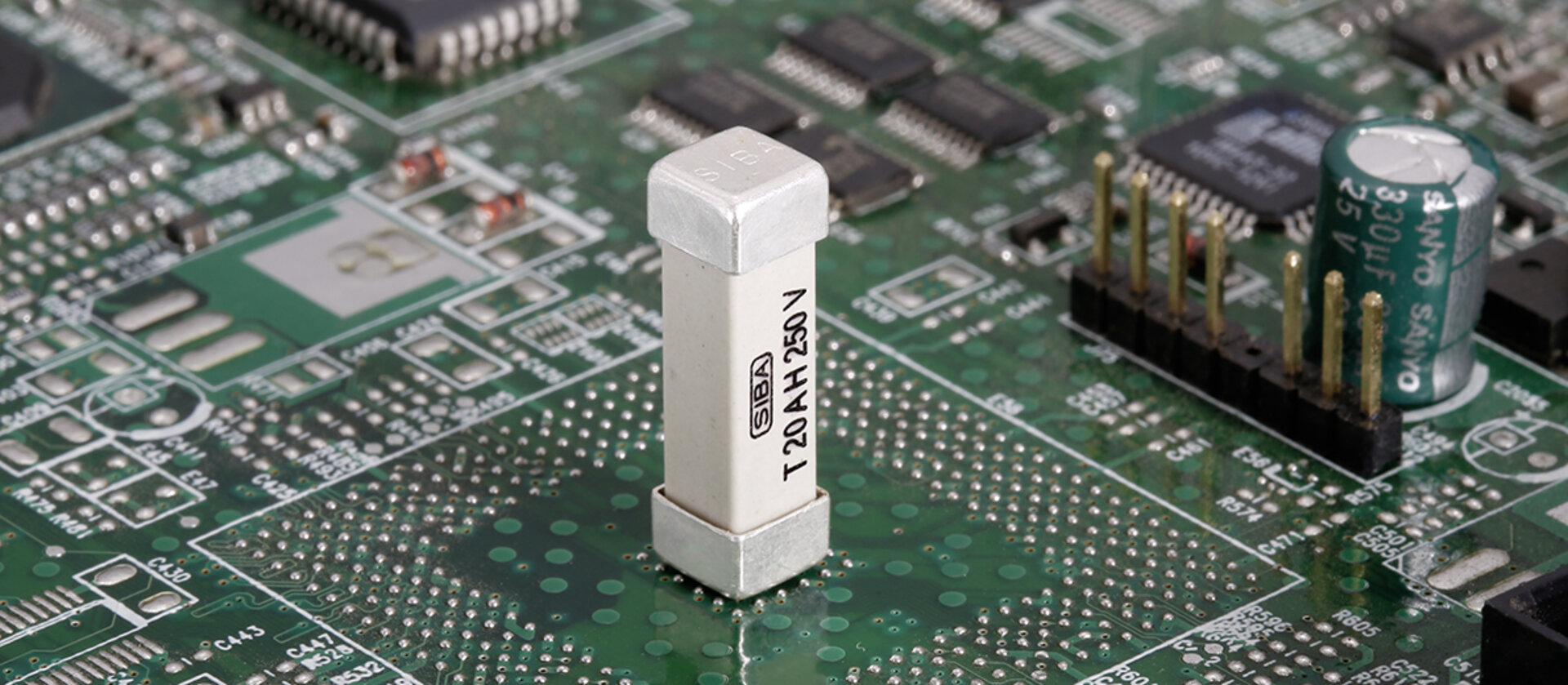

SMD fuse-links for smart meter electronics
- High-precision fuse-link conductors, suitable for digital and communications units
- High pulse immunity against transient mains disturbances with optimal design
- Space-saving for dense PCB layouts
Fuse-links for demanding environmental conditions
- Resistant to moisture, temperature fluctuations and UV exposure
- Designed for distribution cabinets and mains connection points
- Fuse-links with low power dissipation
- Very low self-heating in enclosed meter housings
- Reduced thermal load on the meter circuit board
- Contribute to energy efficiency and service life of the appliances
2024737
- Size:
SQB-DC153
Rated current:
100A - 630A
9044939
- Size:
SQB-DC153
Rated current:
750A - 1400A
9039226
- Size:
SQB-DC154
Rated current:
500A - 2000A
The European and national energy policy is specifically focused on smart metering systems in order to achieve the objectives of the European Green Deal, the EU Energy Efficiency Directive and the Metering Point Operation Act (MsbG). Network operators and regulatory authorities are calling for robust, tamper-proof, long-term stable metering devices as the basis for reliable load management and secure data communication.
SIBA protection solutions meet these requirements – in technical, regulatory and economic terms.
European and national energy policy relies on smart metering systems to achieve the objectives of the European Green Deal, the EU Energy Efficiency Directive and the Metering Point Operation Act (MsbG). At the same time, the Federal Network Agency is calling for robust, tamper-proof metering devices as the basis for reliable load management and secure data communication. This places greater technical demands on the metering devices. SIBA provides the right solutions for this environment.
Measurement environments place high demands on miniature.
Depending on the location, high short circuit currents may occur – particularly in applications close to the mains supply or in industrial settings. That is why a high breaking capacity is crucial. In practice, currents with a breaking capacity of 50kA or more are required.
Equally important is the correct rating of the rated voltage. Different AC and DC voltage levels require fuse-links that disconnect reliably in the event of a fault and protect sensitive measurement electronics – ensuring that the fuse-link itself is safe.
SIBA fuse-links are specifically designed to meet these requirements – ensuring maximum protection, stable measurement readings and long-term operational reliability.

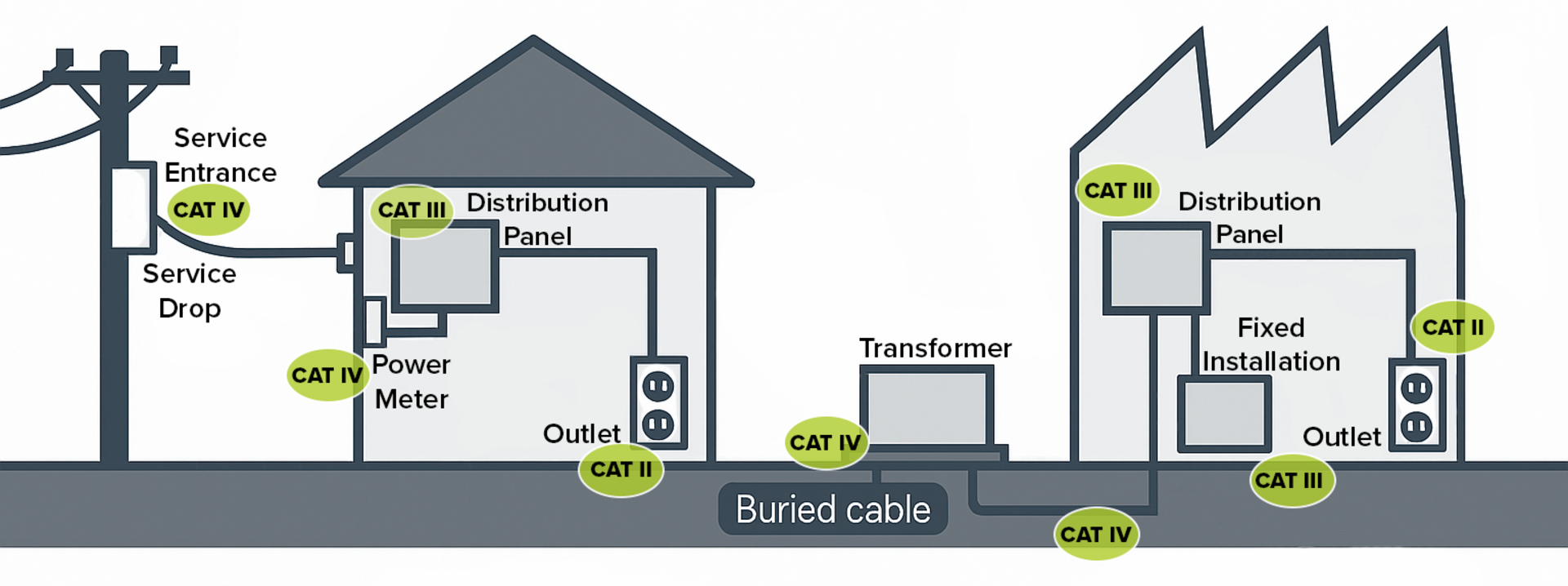

The measurement categories CAT I to CAT IV describe, in accordance with IEC 61010, the environment in which measuring instruments are implemented and thus the potential hazards to be expected from
- transient overvoltages,
- available short circuit energy,
- potential arc flash and explosion incidents.
In terms of standards the following applies:
The closer the measurement point is to the energy source, the higher the short circuit current and transient energy and the more stringent the safety requirements for the measuring instrument and its protective components.
Fuse-links
Comprehensive protection with SIBA fuse-links.
Fuses for standard measurement applications
SIBA protection solutions for measurement equipment and metering applications

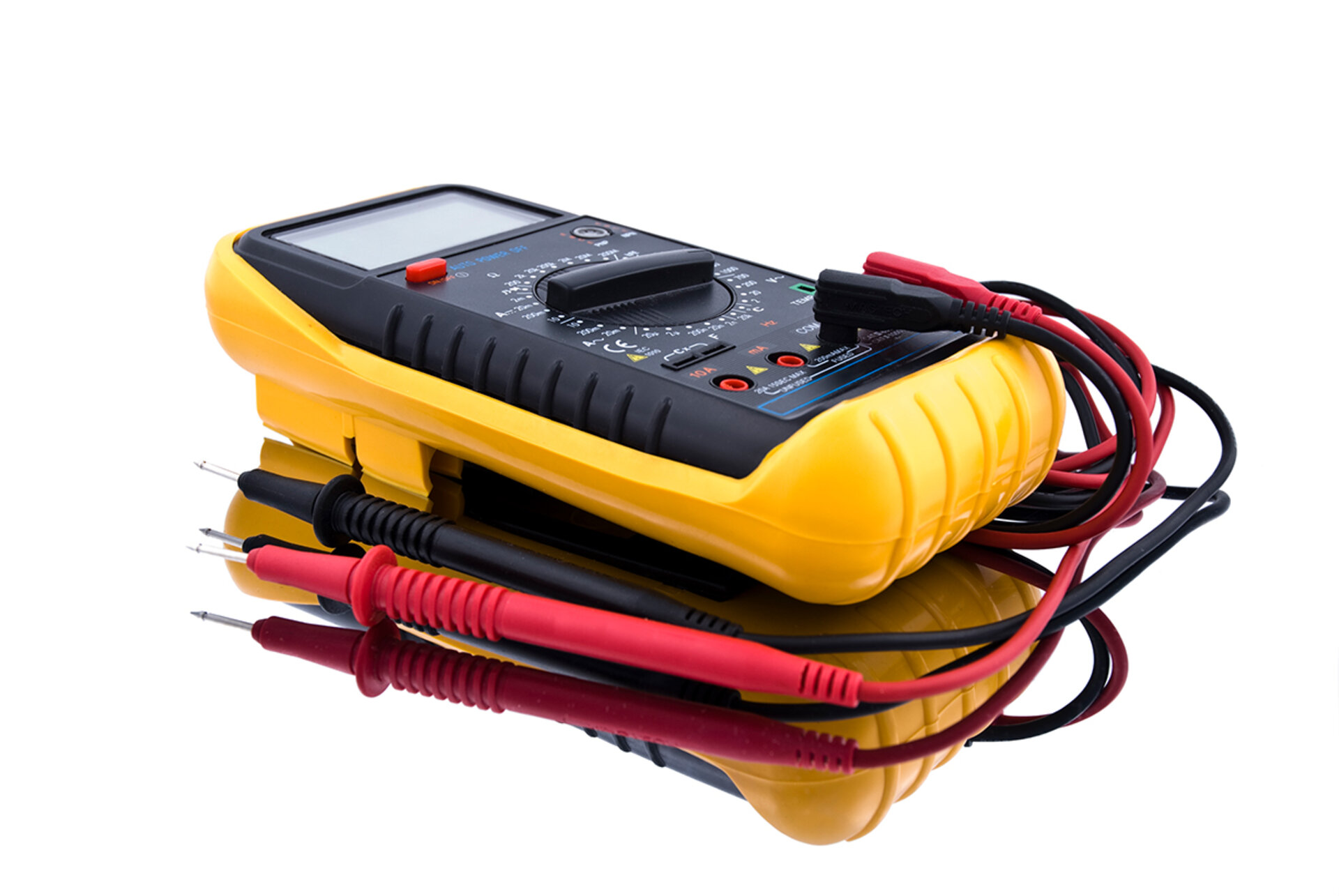

Benefits for measuring instruments and multimeters
- High switching capacity
- Reliable short circuit protection
- In some cases high measurement voltages and currents
Device protection fuses for measuring instruments and multimeters

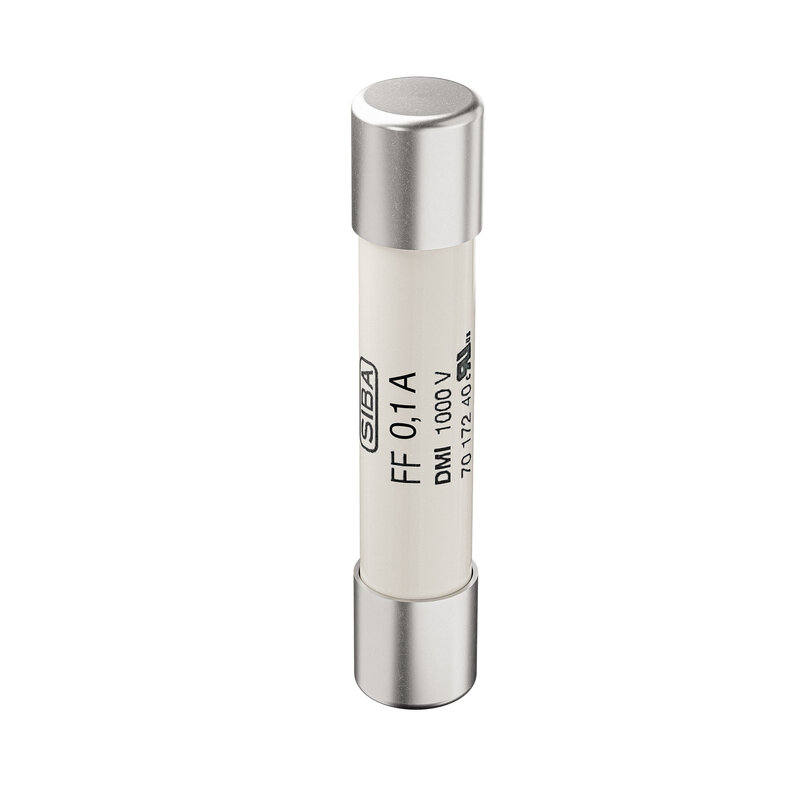

7017240 Fuse-Link
- Size
- Dimensions
- 6.3x32
- Rated current
- 0.1A - 2A
- Rated voltage
- DC1000 V
- Characteristic
- FF (aR)
- Rated breaking capacity
- 30kA DC 1000V
