We found 1 main article with a total of 23 sub-articles for your search.

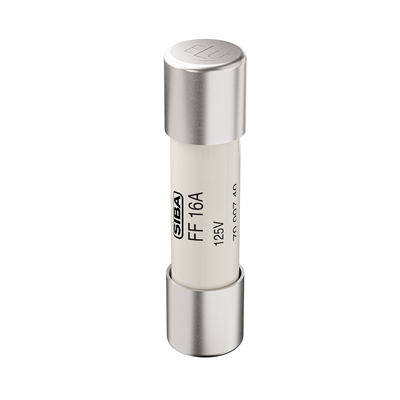

7000740 Fuse-Link

Size	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity	PDF
	5x20	0.1A - 16A	125 V	FF	10kA AC 125V	Download PDF

23 Article(s)

Item number	Dimensions	Rated current	Rated voltage	Characteristic	Rated breaking capacity
7000740.0,1	5x20	100mA	400 V	FF	10kA AC 400V	Details to product 7000740.0,1
7000740.0,16	5x20	160mA	400 V	FF	10kA AC 400V	Details to product 7000740.0,16
7000740.0,2	5x20	200mA	400 V	FF	10kA AC 400V	Details to product 7000740.0,2
7000740.0,25	5x20	250mA	400 V	FF	10kA AC 400V	Details to product 7000740.0,25
7000740.0,315	5x20	315mA	400 V	FF	10kA AC 400V	Details to product 7000740.0,315
7000740.0,315AK	5x20	315mA	400 V	FF	10kA AC 400V	Details to product 7000740.0,315AK
7000740.0,4	5x20	400mA	400 V	FF	10kA AC 400V	Details to product 7000740.0,4
7000740.0,5	5x20	500mA	400 V	FF	10kA AC 400V	Details to product 7000740.0,5
7000740.0,5IP	5x20	500mA	400 V	FF	10kA AC 400V	Details to product 7000740.0,5IP
7000740.0,63	5x20	630mA	400 V	FF	10kA AC 400V	Details to product 7000740.0,63
7000740.1	5x20	1A	400 V	FF	10kA AC 400V	Details to product 7000740.1
7000740.1,25	5x20	1,25A	400 V	FF	10kA AC 400V	Details to product 7000740.1,25
7000740.1,6	5x20	1,6A	400 V	FF	10kA AC 400V	Details to product 7000740.1,6
7000740.10	5x20	10A	250 V	FF	200kA AC 250V	Details to product 7000740.10
7000740.12,5	5x20	12,5A	250 V	FF	200kA AC 250V	Details to product 7000740.12,5
7000740.16	5x20	16A	125 V	FF	10kA AC 125V	Details to product 7000740.16
7000740.2	5x20	2A	400 V	FF	10kA AC 400V	Details to product 7000740.2
7000740.2,5	5x20	2,5A	400 V	FF	10kA AC 400V	Details to product 7000740.2,5
7000740.3,15	5x20	3,15A	400 V	FF	10kA AC 400V	Details to product 7000740.3,15
7000740.4	5x20	4A	400 V	FF	10kA AC 400V	Details to product 7000740.4
7000740.6,3	5x20	6,3A	250 V	FF	200kA AC 250V	Details to product 7000740.6,3
7000740.8	5x20	8A	250 V	FF	200kA AC 250V	Details to product 7000740.8
7000740.0,8	5x20	800mA	400 V	FF	10kA AC 400V	Details to product 7000740.0,8
