  We found 1 main article with a total of 24 sub-articles for your search.

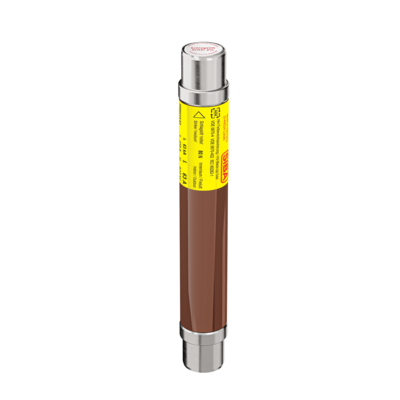

Fuse-Link

3000413  Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity PDF
e=292 2A - 63A 6/12 kV Back-Up 63 kA

24 Article(s)

Article number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
3000413.10 e=292 10A 6/12 kV Back-Up 63 kA Details
3000413.10D e=292 10A 6/12 kV Back-Up 63 kA Details
3000413.16 e=292 16A 6/12 kV Back-Up 63 kA Details
3000413.16D e=292 16A 6/12 kV Back-Up 63 kA Details
3000413.2 e=292 2A 6/12 kV Back-Up 63 kA Details
3000413.2,5 e=292 2,5A 6/12 kV Back-Up 63 kA Details
3000413.20 e=292 20A 6/12 kV Back-Up 63 kA Details
3000413.20D e=292 20A 6/12 kV Back-Up 63 kA Details
3000413.25 e=292 25A 6/12 kV Back-Up 63 kA Details
3000413.25D e=292 25A 6/12 kV Back-Up 63 kA Details
3000413.2D e=292 2A 6/12 kV Back-Up 63 kA Details
3000413.3,15 e=292 3,15A 6/12 kV Back-Up 63 kA Details
3000413.31,5 e=292 31,5A 6/12 kV Back-Up 63 kA Details
3000413.31,5D e=292 31,5A 6/12 kV Back-Up 63 kA Details
3000413.4 e=292 4A 6/12 kV Back-Up 63 kA Details
3000413.40 e=292 40A 6/12 kV Back-Up 63 kA Details
3000413.40D e=292 40A 6/12 kV Back-Up 63 kA Details
3000413.4D e=292 4A 6/12 kV Back-Up 63 kA Details
3000413.5 e=292 5A 6/12 kV Back-Up 63 kA Details
3000413.50 e=292 50A 6/12 kV Back-Up 63 kA Details
3000413.50D e=292 50A 6/12 kV Back-Up 63 kA Details
3000413.6,3 e=292 6,3A 6/12 kV Back-Up 63 kA Details
3000413.6,3D e=292 6,3A 6/12 kV Back-Up 63 kA Details
3000413.63 e=292 63A 6/12 kV Back-Up 63 kA Details
