  We found 1 main article with a total of 54 sub-articles for your search.

7012540

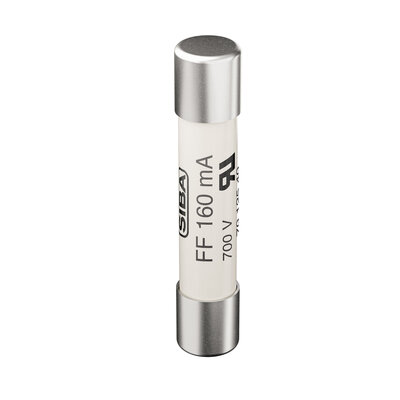

7012540  Fuse-Link

Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity PDF
6.3x32 0.1A - 25A 500 V FF 50kA AC 500V

54 Article(s)

Article number Size Dimensions Rated current Rated voltage Characteristic Rated breaking capacity
7012540.0,1 6.3x32 100mA 700 V FF 50kA AC 700V Details
7012540.0,125 6.3x32 125mA 700 V FF 50kA AC 700V Details
7012540.0,16 6.3x32 160mA 700 V FF 50kA AC 700V Details
7012540.0,1AK 6.3x32 100mA 700 V FF 50kA AC 700V Details
7012540.0,1IP 6.3x32 100mA 700 V FF 50kA AC 700V Details
7012540.0,2 6.3x32 200mA 700 V FF 50kA AC 700V Details
7012540.0,25 6.3x32 250mA 700 V FF 50kA AC 700V Details
7012540.0,25IP 6.3x32 250mA 700 V FF 50kA AC 700V Details
7012540.0,315 6.3x32 315mA 700 V FF 50kA AC 700V Details
7012540.0,4 6.3x32 400mA 700 V FF 50kA AC 700V Details
7012540.0,4AK 6.3x32 400mA 700 V FF 50kA AC 700V Details
7012540.0,4AK-GT 6.3x32 400mA 700 V FF 50kA AC 700V Details
7012540.0,5 6.3x32 500mA 700 V FF 50kA AC 700V Details
7012540.0,5AK 6.3x32 500mA 700 V FF 50kA AC 700V Details
7012540.0,5IP 6.3x32 500mA 700 V FF 50kA AC 700V Details
7012540.0,63 6.3x32 630mA 700 V FF 50kA AC 700V Details
7012540.0,8 6.3x32 800mA 700 V FF 50kA AC 700V Details
7012540.1 6.3x32 1A 700 V FF 50kA AC 700V Details
7012540.1,25 6.3x32 1,25A 700 V FF 50kA AC 700V Details
7012540.1,6 6.3x32 1,6A 700 V FF 50kA AC 700V Details
7012540.10 6.3x32 10A 600 V FF 50kA AC 600V Details
7012540.10AK 6.3x32 10A 600 V FF 50kA AC 600V Details
7012540.10IP 6.3x32 10A 600 V FF 50kA AC 600V Details
7012540.12,5 6.3x32 12,5A 500 V FF 50kA AC 500V Details
7012540.12,5AK 6.3x32 12,5A 500 V FF 50kA AC 500V Details
7012540.12,5IP 6.3x32 12,5A 500 V FF 50kA AC 500V Details
7012540.16 6.3x32 16A 500 V FF 50kA AC 500V Details
7012540.16AK 6.3x32 16A 500 V FF 50kA AC 500V Details
7012540.16IP 6.3x32 16A 500 V FF 50kA AC 500V Details
7012540.1IP 6.3x32 1A 700 V FF 50kA AC 700V Details
7012540.2 6.3x32 2A 700 V FF 50kA AC 700V Details
7012540.2,5 6.3x32 2,5A 600 V FF 50kA AC 600V Details
7012540.2,5IP 6.3x32 2,5A 600 V FF 50kA AC 600V Details
7012540.20 6.3x32 20A 500 V FF 50kA AC 500V Details
7012540.20AK 6.3x32 20A 500 V FF 50kA AC 500V Details
7012540.20IP 6.3x32 20A 500 V FF 50kA AC 500V Details
7012540.25 6.3x32 25A 500 V FF 50kA AC 500V Details
7012540.25IP 6.3x32 25A 500 V FF 50kA AC 500V Details
7012540.2AK 6.3x32 2A 700 V FF 50kA AC 700V Details
7012540.2IP 6.3x32 2A 700 V FF 50kA AC 700V Details
7012540.3,15 6.3x32 3,15A 600 V FF 50kA AC 600V Details
7012540.3,15IP 6.3x32 3,15A 600 V FF 50kA AC 600V Details
7012540.4 6.3x32 4A 600 V FF 50kA AC 600V Details
7012540.4IP 6.3x32 4A 600 V FF 50kA AC 600V Details
7012540.5 6.3x32 5A 600 V FF 50kA AC 600V Details
7012540.5AK 6.3x32 5A 600 V FF 50kA AC 600V Details
7012540.5IP 6.3x32 5A 600 V FF 50kA AC 600V Details
7012540.6,3 6.3x32 6,3A 600 V FF 50kA AC 600V Details
7012540.6,3IP 6.3x32 6,3A 600 V FF 50kA AC 600V Details
7012540.8 6.3x32 8A 600 V FF 50kA AC 600V Details
7012540.8IP 6.3x32 8A 600 V FF 50kA AC 600V Details
7012540.4AK 6.3x32 4A 600 V FF 50kA AC 600V Details
7012540.8AK 6.3x32 8A 600 V FF 50kA AC 600V Details
7012540.25AK 6.3x32 25A 500 V FF 50kA AC 500V Details
