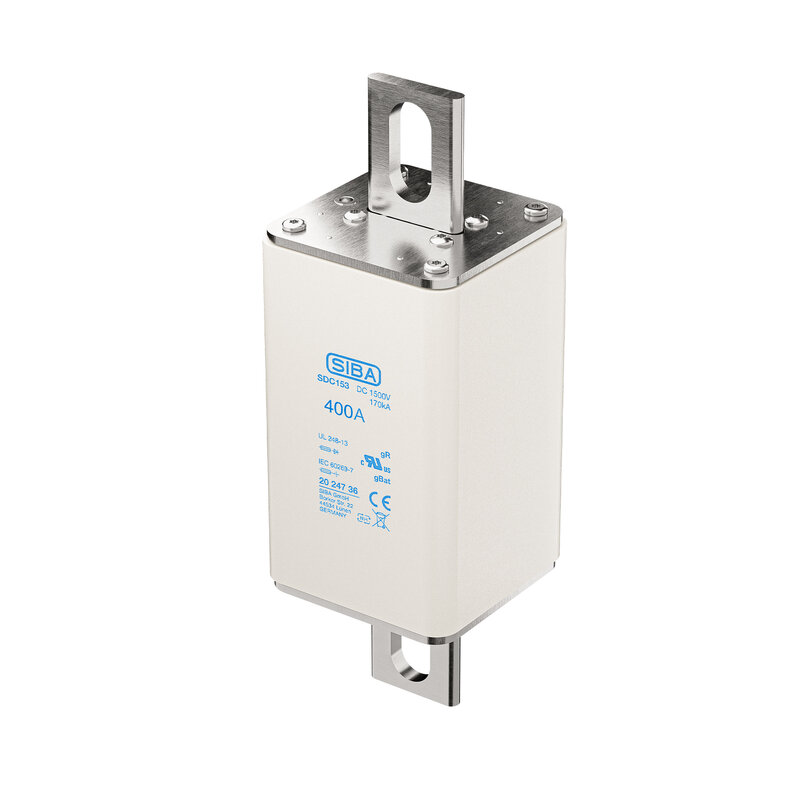

2024736.400 - Fuse-Link

URS SQB-DC153 US short 400A gBat DC 1500V

  • IEC 60269-7
  • UL 248-13
CRUUS
2024736.400

Download PDF Contact us

General product data

Material number 2024736.400
Article type Fuse-Link
Product group Sem.Cond.Prot. Fuse-Link
Product subgroup Square Dimension
Rated current 400A
Rated voltage (AC/DC) DC 1500 V
Rated breaking capacity (AC/DC) 260kA DC 1500V
Characteristic gBat/gR
Size SQB-DC153
Indicator type without Microswitch
Contact style US short
Standard IEC IEC 60269-7
Standard UL UL 248-13
Approvals cRUus CE

Downloads

3D file 3D file
Conformity declaration Conformity declaration
Material datasheet Material datasheet

Back to product overview

Product family

2024736

2024736Fuse-Link

Size Dimensions Rated current Rated voltage (AC/DC) Characteristic Rated breaking capacity (AC/DC) PDF
SQB-DC153100A - 500ADC 1500 VgBat/gR260kA DC 1500V

(6) Article

SKU Size Dimensions Rated current Rated voltage (AC/DC) Characteristic Rated breaking capacity (AC/DC)
2024736.250SQB-DC153250ADC 1500 VgBat/gR260kA DC 1500V Details
2024736.315SQB-DC153315ADC 1500 VgBat/gR260kA DC 1500V Details
2024736.350SQB-DC153350ADC 1500 VgBat/gR260kA DC 1500V Details
2024736.400SQB-DC153400ADC 1500 VgBat/gR260kA DC 1500V Details
2024736.450SQB-DC153450ADC 1500 VgBat/gR260kA DC 1500V Details
2024736.500SQB-DC153500ADC 1500 VgBat/gR260kA DC 1500V Details
