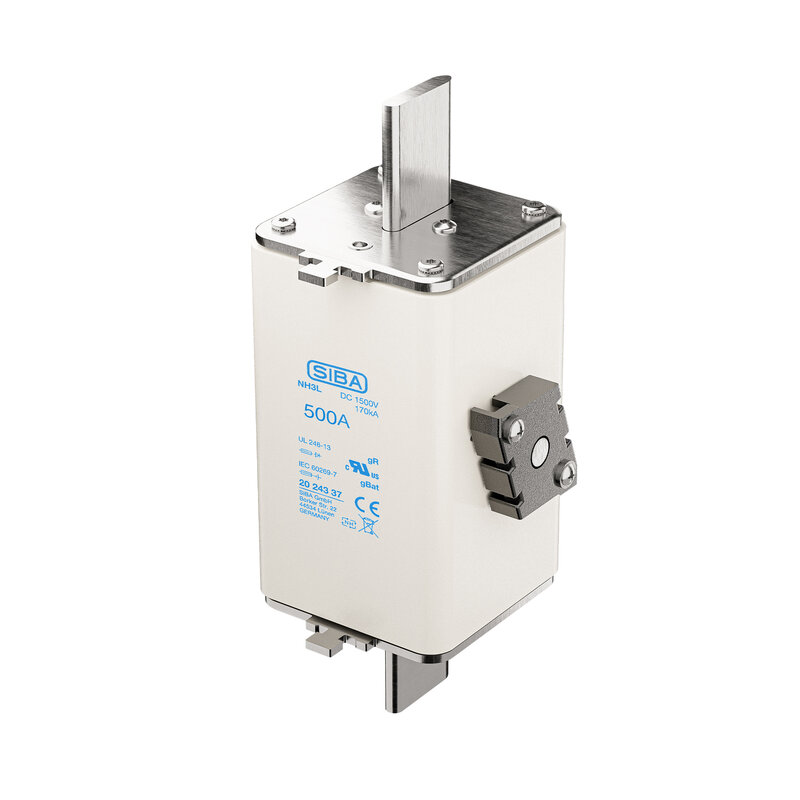

2024337.500 - Fuse-Link

*URM 500A gBat NH3L DC 1500V Ad

General product data

Material number	2024337.500
Article type	Fuse-Link
Product group	Sem.Cond.Prot. Fuse-Link
Product subgroup	Knife Contacts
Rated current	500A
Rated voltage (AC/DC)	DC 1500 V
Rated breaking capacity (AC/DC)	260kA DC 1500V
Characteristic	gBat/gR
Size	NH3L
Indicator type	Ms-Ad 90°
Contact style	knife
Standard IEC	IEC 60269-7
Standard UL	UL 248-13
Variant type	Grifflaschen
Approvals	cRUus CE

Size	Dimensions	Rated current	Rated voltage (AC/DC)	Characteristic	Rated breaking capacity (AC/DC)	PDF
NH3L		100A - 500A	DC 1500 V	gBat/gR	260kA DC 1500V	Download PDF

(7) Article

SKU	Size	Rated current	Rated voltage (AC/DC)	Characteristic	Rated breaking capacity (AC/DC)
2024337.125	NH3L	125A	DC 1500 V	gBat/gR	260kA DC 1500V	Details zu Produkt 2024337.125
2024337.250	NH3L	250A	DC 1500 V	gBat/gR	260kA DC 1500V	Details zu Produkt 2024337.250
2024337.315	NH3L	315A	DC 1500 V	gBat/gR	260kA DC 1500V	Details zu Produkt 2024337.315
2024337.350	NH3L	350A	DC 1500 V	gBat/gR	260kA DC 1500V	Details zu Produkt 2024337.350
2024337.400	NH3L	400A	DC 1500 V	gBat/gR	260kA DC 1500V	Details zu Produkt 2024337.400
2024337.450	NH3L	450A	DC 1500 V	gBat/gR	260kA DC 1500V	Details zu Produkt 2024337.450
2024337.500	NH3L	500A	DC 1500 V	gBat/gR	260kA DC 1500V	Details zu Produkt 2024337.500
